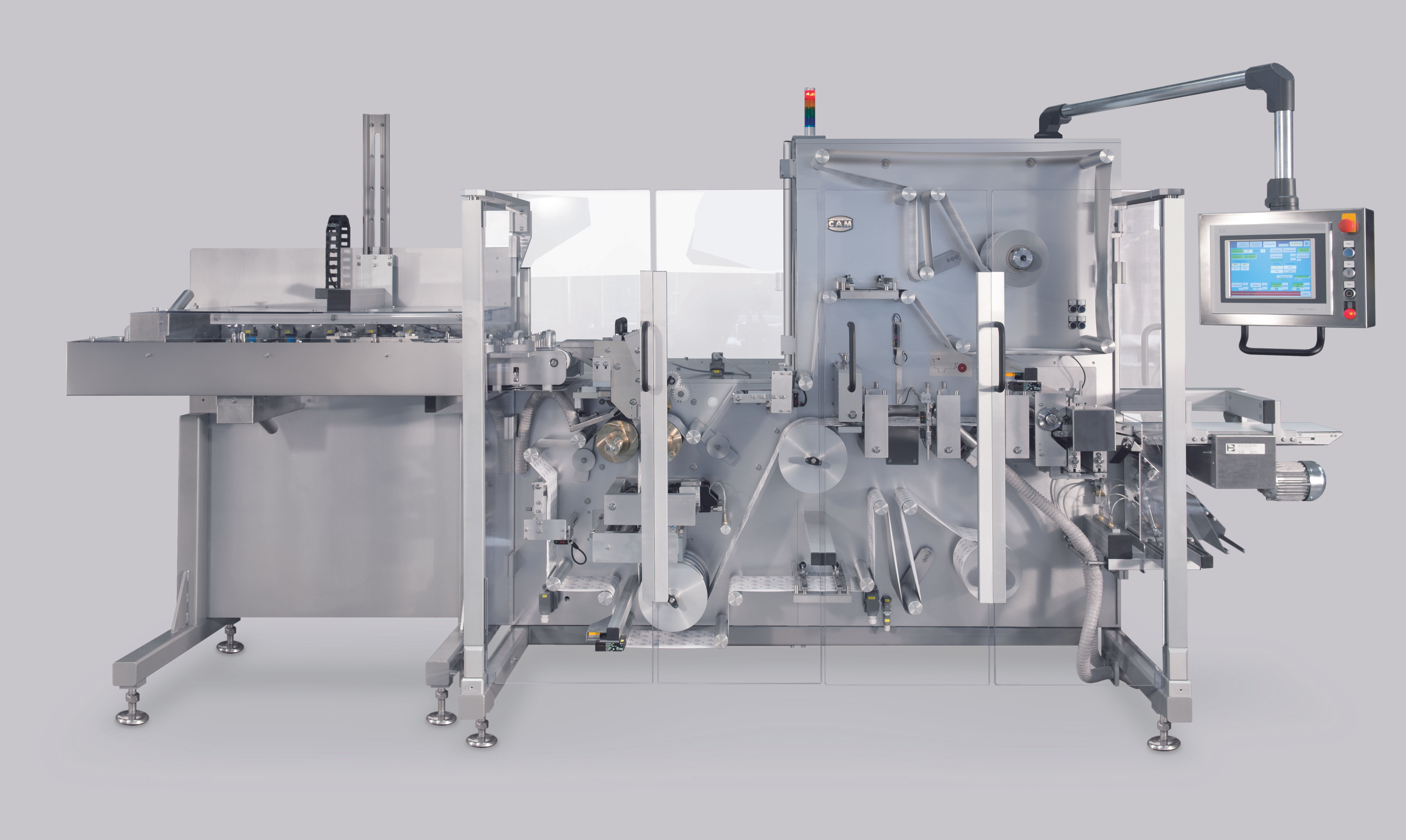

5000EH | High speed strip packaging horizontal machine
Vertical Sealing Machine
• Designed for packing tablets, capsules, and effervescent tablets.
• Speed up to 300 cycles/min, depending on product size.
• Suitable for all heat-sealable films (excluding pure polyethylene).
• Comprises mechanical parts, electrical components, and guarding.
• Complies with GMP regulations and has a cantilever structure.
• Features a surface finish in accordance with pharmaceutical requirements.
• Feeds packaging material from two reels.
• Equipped with an easy temperature and pressure setting unit.
• Features a horizontal exit for easy connection with downstream machines.
Description
The Vertical Sealing Machine Mod. 5000H is a machine designed for packing tablets, capsules, and effervescent tablets. It can speed up to 300 cycles/min and is suitable for all heat-sealable films, excluding pure polyethylene. The machine includes mechanical parts, electrical components, and guarding. It meets GMP regulations and has a cantilever structure for easy accessibility. It features a surface finish in accordance with pharmaceutical requirements and feeds packaging material from two reels. It has an easy temperature and pressure setting unit and a horizontal exit for easy connection with downstream machines. Additional components and optional devices are available.
Technical Data
Parameter 5000/200EH 5000/400EH Mechanical speed 300 strokes/1’ 300 strokes/1’ Power absorption 9 KW 12 KW Air consumption 180 Nl/1’ 180 Nl/1’ Air pressure 6÷8 bar 6÷8 bar Gross weight ~2500 kg ~3000 kg Size range (5000/200EH) min. max. A 35 35 C Programmable Programmable L (Reel width) - 200 Size range (5000/400EH) min. max. A 35 35 C Programmable Programmable L (Reel width) - 400
